Acrylic Coated Fiberglass Fabric

Quantity:
Availability:





Inquire Add to Basket

Product Description

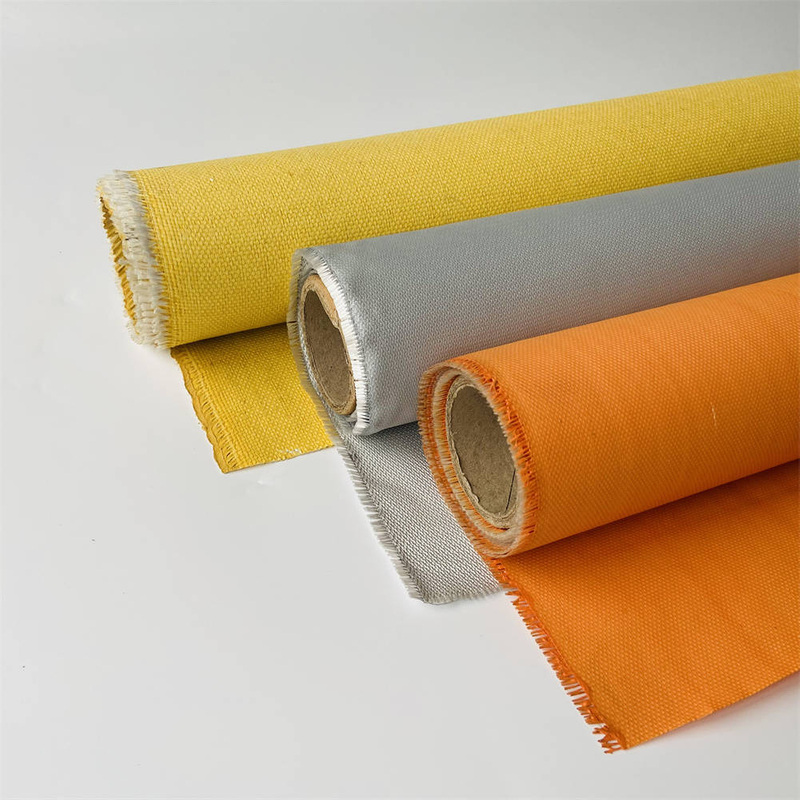

Acrylic coated glass fiber cloth is made of glass fiber cloth as base cloth and produced by acrylic coating. It has excellent weather resistance, heat resistance and easy cutting. And it is also an eco-friendly product. In addition, the double-coated cloth provides excellent thermal insulation. This makes it ideal for expansion joints and insulation jacket insulation.

Surface Treatment	Acrylic
Coating Side	Double
Color	Grey, red or customized
Thickness	0.3mm - 1.5mm
Weight	500gsm - 2000gsm or 15oz / yd² - 59oz / yd²
Width	Multi colors are available
Temperature Standing	550ºC(1022ºF)
Length per Roll	Customized
Base Cloth	Fiberglass cloth, texurized fiberglass cloth, high silica cloth, steel wire reinforced Texturized fiberglass cloth, one side aluminum foil laminated fiberglass cloth

Product Properties

1. Strong resistance to flammability

2. High chemical stability

3. Excellent abrasion resistance

4. Good properties of flexibility

5. Good mechanical properties

Applications

Insulation in expansion joints, Insulation jackets, Covering layer in seals etc...

Related Products

Product No.	Yarn Type	Coating	Thickness	Weight
Product No.	Yarn Type	Coating	mm	g/m²	oz / yd²
ACE0351002	E-Glass	2 sides	0.35	500	14.7
ACE0401202	E-Glass	2 sides	0.4	550	16.2
ACE0601502	E-Glass	2 sides	0.6	810	23.9
ACE0802002	E-Glass	2 sides	0.8	1040	30.7
ACE1102102	E-Glass	2 sides	1.1	1510	44.5
ACE1502402	E-Glass	2 sides	1.5	1840	54.3
ACT0752002	Texturized	2 sides	0.75	800	23.6
ACT0802202	Texturized	2 sides	0.8	1040	30.7
ACT1502502	Texturized	2 sides	1.5	1450	42.8
